| VIBRATING ROLLER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
Model |
LTC06 |

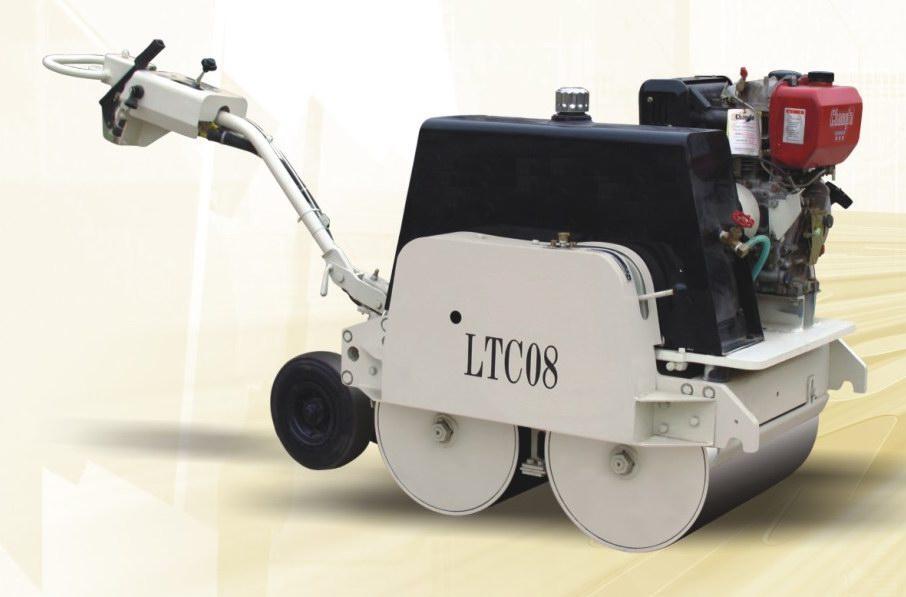

LTC08 |
Photo |
|
| |
Operating
mass(kg) |
735 |
770 |
|
|
|
| |
Static linear
liad(N/cm) |
35/55 |
46/73 |
|
|
|
| |
Vibration
amplitude(mm) |
0.25 |
0.25 |
|
|
|
| |
Vibration
frequency(Hz) |
48 |
48 |
|
|
|
| |
Centrifugal
force(kN) |
12 |
12 |
|
|
|
| |
Travel speed
(km/h) |
2.5 |
2.5 |
|
|
|
| |
Grade ability
(%) |
40 |
40 |
|
|
|
| |
Turning
radius(mm) |
2700 |
2700 |
|
|
|
| |
Overall
dimension (mm) |
2330〜795〜1050 |
2330〜795〜1050 |
|
|
|
| |
Vibration round
width (mm) |
600 |
600 |
|
|
|
| |
Wheelbase (mm) |
470 |
470 |
|
|
|
| |
Diesel power
/model |
5.68KW/CF186F |
5.68KW/CF186F |
|
|
|
| |
|
|
| |
MODEL |

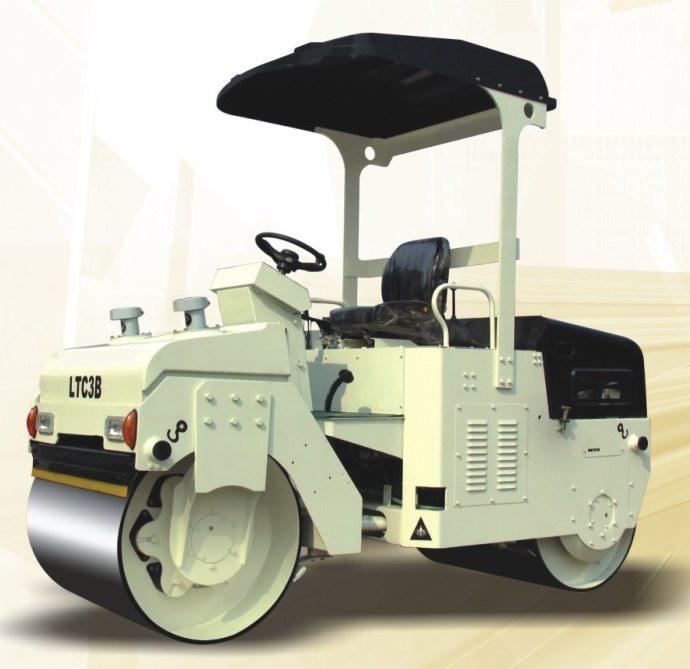

LTC3B |
LTC2.5 |
LTC2 |
Photo |
|
| |
Operating mass
(kg) |
3000 |
2500 |
2000 |
|
|
| |
Static linear
load (N/cm) |
128/172 |
115/163 |
105/150 |
|
| |
Vibration
frequency (Hz) |
50 |
50 |
50 |
|
| |
Centrifugal
force (KN) |
30 |
28 |
25 |
|
| |
Travel speed
(km/h) |
5.6 |
5.6 |
5.6 |
|
| |
Grade ability
(%) |
20 |
25 |
30 |
|
| |
Turning radius
(mm) |
4600 |
4000 |
4000 |
|
| |
Overall
Dimension (mm) |
2860〜1314〜2600 |
2860〜1200〜2550 |
2765〜1060〜2550 |
|
| |
Vibration round
width (mm) |
1000 |
900 |
−900 |
|
| |
Wheelbase (mm) |
2100 |
2100 |
2000 |
|
| |
Diesel power
(KW) |
21 |
21 |
21 |
|
|
| |
Diesel model |
N385Q |
N385Q |
N385Q |
|
|
| |
|
|
| |
MODEL |

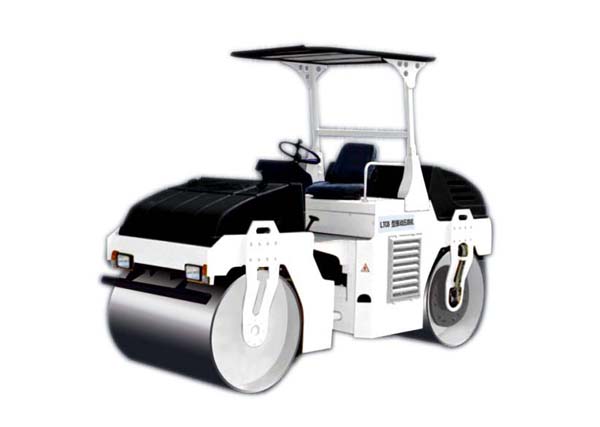

LTC6 |
LTC6D |
Photo |
|
| |
Operating weight
(kg) |
6000 |
6100 |
|
|
|
| |
Static linear
load (N/cm) |
232.4 |
232.4 |
|
|
|
| |
Diameter of
oscillatory drum (mm) |
950 |
950 |
|
|
|
| |
Rolling width
(mm) |
1320 |
1320 |
|
|
|
| |
Centrifugal
force |
55 |
|
|
|
|
| |
Centrifugal
moment |
|
20.6 |
|
|
|
| |
Oscillation
frequency |
46 |
43 |
|
|
|
| |
The oretical
amplitude of vibration (mm) |
0.62 |
|
|
|
|
| |
oscillation
amplitude |
|
0.6 |
|
|
|
| |
Moving speed
range I/II (km/h) |
2.5/7.5 |
2.5/7.5 |
|
|
|
| |
Gradeability (%) |
>20 |
>20 |
|
|
|
| |
Diesel engine
model |
495AY |
495AY |
|
|
|
| |
Rated rotation
speed (r/min) |
2000 |
2000 |
|
|
|
| |
Rated power (KW) |
35.3 |
35.3 |
|
|
|
| |
Overall
dimensions(L〜W〜H) (mm) |
3650〜1530〜2650 |
3650〜1530〜2650 |
|
|
|
| |
|
|
| |
| |
