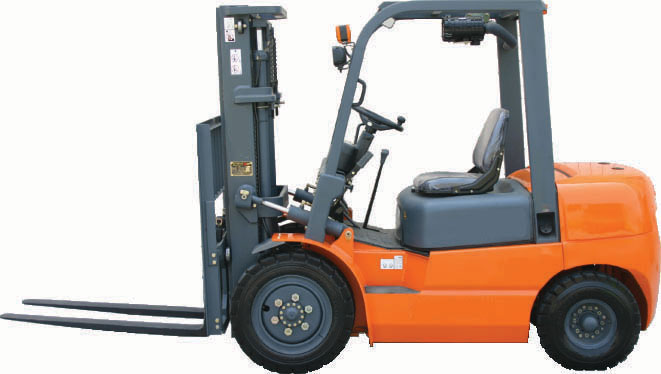

Generals	Model				CPC(D)20-X			CPQ(D)20-H	CPQ(D)25-H
					CPC(D)20-W			CPY(D)20-H	CPY(D)25-H
	Power type				Diesel			Gasoline
	Rated capacity			kg	2000			2000	2500
	Load center			mm	500			500
Dimensions	Lift height			mm	3000			3000
	Free lift height			mm	140			140
	Fork size   N×U×L			mm	1070*120*40			1070*120*40	1070*100*45
	Mast tilt angle             α / β			deg	6/12			6/12
	Front o-verhang           G			mm	482			482
	Overall	Length to face of fork   J		mm	2510			2510	2580
	dimensions	Overall width  Q		mm	1150			1150
		Mast lowered height  C		mm	1995			1995
		Mast extended height A		mm	4037			4037
		Overhead guard height P		mm	2060			2060
	Turning radius          W			mm	2170			2170	2240
	Min. right angle aisle width   X			mm	1920			1920	2010
Performance	Travel speed (full load/no load)	Hydraulic		km/h	17/19			18/19
		Mechanical	1		8.5/9			8.5/9
			11		18.5/19			18.5/19
	Lift speed with load			mm/sec	450			450
	Max. gradeability			%	20			20
	Self weight			kg	3550			3550	3880
Wheel & Tires	Tires	Front			7.00-12-12PR			7.00-12-12PR
		Rear			6.00-9-10PR			6.00-9-10PR
	Tread	Front Q		mm	970			970
		Rear   S		mm	970			970
	Wheelbase			MM	1600			1600
	Ground clearance(no load/full load)		Mast M	mm	85/105			85/105
			Frame F		100/105			100/105
Drive units & control	Engine	Apply to truck model			CPC(D)	CPC(D)20/25w1	CPC(D)	CPQ(D)30/35H1	CPQ(D)30/35H4
					20/25x		320/25w3	CPQ(Y)30/35H1	CPQ(Y)30/35H4
		Model			490BPG	ISUZU	HJ493	MITSUBISHI4G64	HW491
						C240PKJ
		Rated output		kw/rpm	37/2650	34.5/2500	39/2500	37/2500	42/2400
		Rated torque		N.m/rpm	148/1900	139/1800	165/1800	161/1600	161/1800
		No.of cylinder			4	4	4	4	4
		Bore×stroke		mm	90*100	86*102	92*93	86.5*100	91*86
		Displacement		L	2.54	2.369	2.771	2.35	2.237

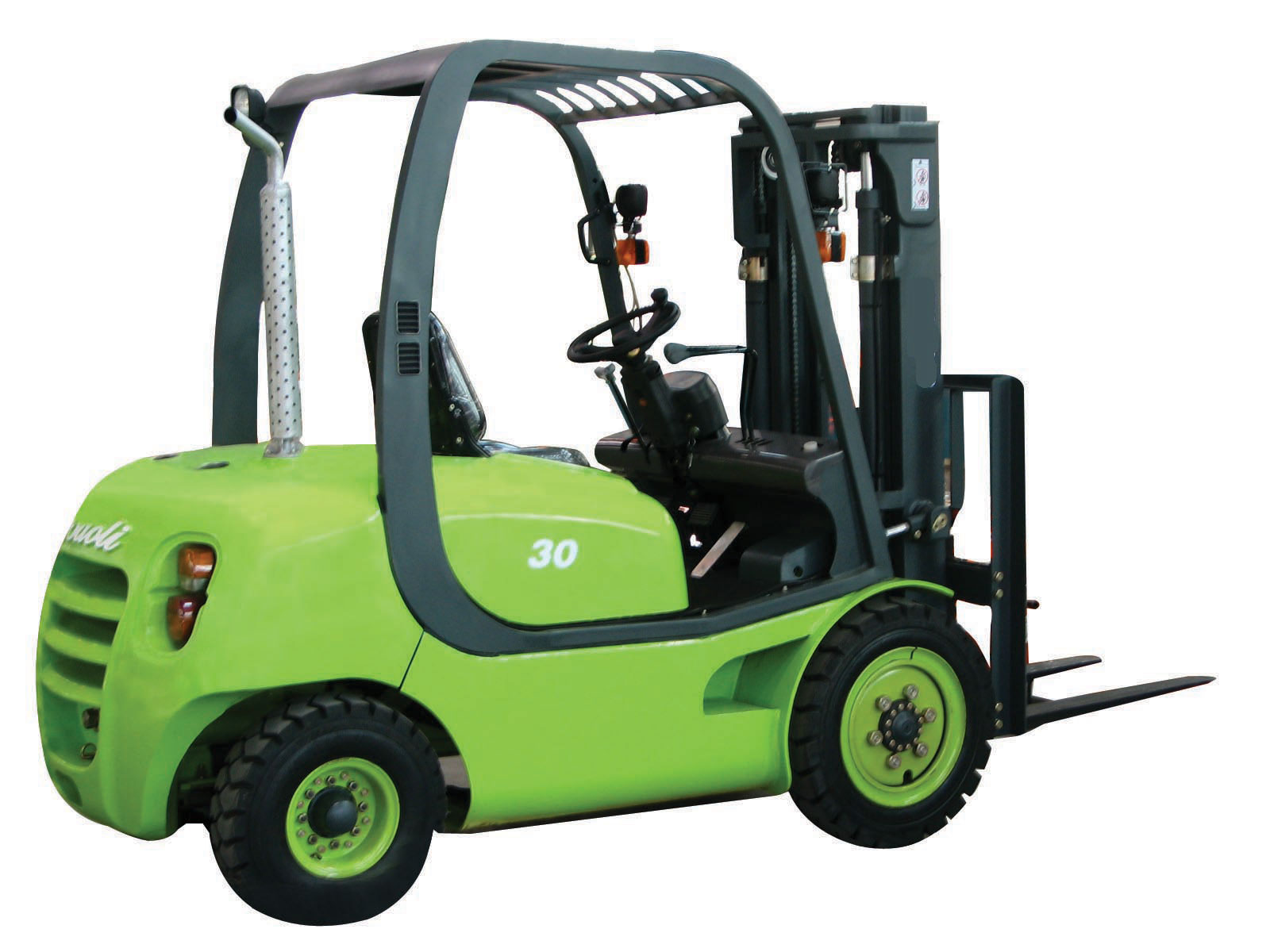

Generals	Model					CPCD20G	CPCD25G	CPCD30G	CPCD35G
	Power type					Diesel
	Rated capacity				kg	2000	2500	3000	3500
	Load center				mm	500
Dimensions	Lift height				mm	3000
	Free lift height				mm	142
	Fork size   N×U×L				mm	1070×122×40		1070×125×45	1070×125×50
	Fork outside spread  Min./Max.				mm	300/1700		300/1700
	Mast tilt angle             α / β				deg	6/12
	Front o-verhang           G				mm	482		497
	Overall		Length to face of fork   J		mm	2480	2535	2670	2740
	dimensions		Overall width  Q		mm	1150		1225
			Mast lowered height  C		mm	2500		2500
			Overhead guard height P		mm	2140		2170
	Turning radius          W				mm	2170	2240	2460	2500
	Min. right angle aisle width   X				mm	1910	2000	2105	2110
Performance	no load/full load	Travel speed	Forward Ⅰ		km/h	18/19.5
			BackwardⅠ			18/19.5
		Lift speed			mm/sec	450		400
	Max. gradeability				%	20		20
	Max. drawbar pull				KN	14		13.5
	Self weight				kg	3550	3880	4360	4750
Wheel & Tires	Tires		Front			7.00-12-12PR		28×9-15-12PR
			Rear			6.00-9-10PR		6.50-10-10PR
	Tread		Front Q		mm	970		1000
			Rear   S		mm	970
	Wheelbase				MM	1600		1700
	Min. ground clearance			Mast	mm	105/85		135/110
	(no load/full load)			Frame		130/125		166/160
Drive units & control	Battery				V/AH	12/105
	Engine		Model			HJ493
			Rated output		kw/rpm	39/2500
			Rated torque		N.m/rpm	165/1800
			Displacement		cc	2.771
	Transmissions		Type			Hydraulic
			Shift	Fwd/Rwd		1 / 1 Power shift
	Operating pressure				Mpa	17.5		19
