| General |
Manufacture |
กก |

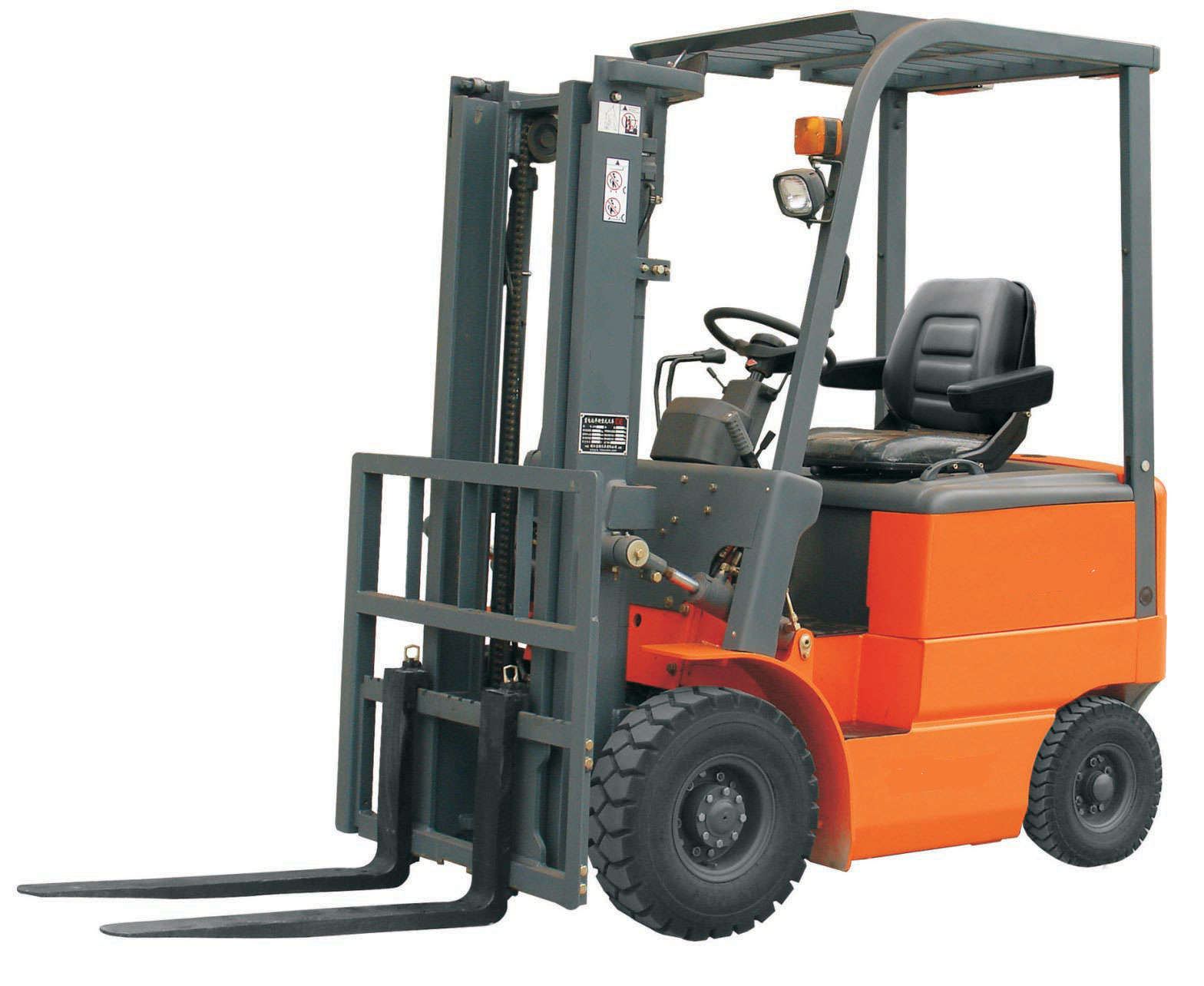

BAOLI FORKLIFT TRUCK |
| Model |
กก |
CPD10 |
CPD15 |
CPD20 |
CPD25 |
| Power type |
กก |
Battery |
| Rated capacity |
kg |
1000 |
1500 |
2000 |
2500 |
| Load center |
mm |
500 |
| Dimensions |
Lift height |
mm |
3000 |
| Free lift height |
mm |
162 |
330 |
| Fork size |
mm |
920กม120กม40 |
1070กม122กม40 |
| Fork outside spread (Min./Max) |
mm |
240/980 |
240/1020 |
| Mast tilt angle |
deg |
6/12 |
| Overall dimensions |
Length to face of fork |
mm |
2056 |
2382 |
2412 |
| Overall width |
mm |
1080 |
1150 |
| Mast lowered height |
mm |
1995 |
2022 |
| Mast extended height |
mm |
4038 |
4040 |
| Overhead guard height |
mm |
2119 |
2150 |
| Turning radius |
mm |
1820 |
2050 |
2100 |
| Front overhang |
mm |
436 |
482 |
| Min. right angle aisle width |
mm |
1810 |
2110 |
2150 |
| Min. right angle stacking aisle width |
mm |
3370 |
3715 |
3755 |
| Performance |
No load/with load |
Travel speed |
km/h |
14.5/13 |
14/12.5 |
14/13 |
13.5/12.5 |
| Lifting speed |
mm/sec |
400/300 |
390/285 |
360/245 |
350/235 |
| Max. grade ability |
% |
15 |
10 |
| Self weight |
kg |
2810 |
3080 |
4080 |
4400 |
| Max. pull force(full load) |
KN |
6 |
6.5 |
8 |
| Wheel & Tires |
Tyres |
Front |
กก |
6.50-10-10PR |
7.00-12-12PR |
| Rear |
กก |
5.00-8-8PR |
18กม7-8-14PR |
| Tread |
Front |
mm |
890 |
960 |
| Rear |
mm |
920 |
950 |
| Wheelbase |
mm |
1250 |
1500 |
| Ground clearance |
mm |
105/95 |
120/100 |
